China Glory Construction Machinery Co,;Ltd is your reliable genuine TEREX rigid dump truck parts supplier
9 Years
| Ask Lasest Price | |

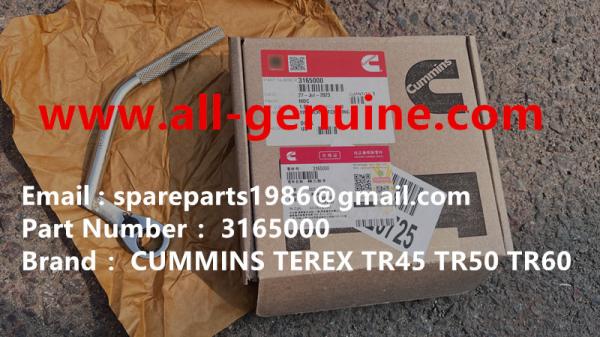

| Brand Name : | TEREX CUMMINS |
| Model Number : | 3165000 |
| Certification : | ISO9001 |
| Price : | 1-100 USD |
| Supply Ability : | 1000 PCS ONE WEEK |
| Delivery Time : | 3-5 WORKING DAYS |
Email : spareparts1986@gmail.com
Skype:nancy-1986.527
TEL / WhatsApp : 008618264966991
Web : www.all-genuine.com
Terex earthmoving equipment parts
| 4 | 9402827 | ELBOW |
| 5 | 9402711 | CONNECTOR |
| ACCELERATOR LINKAGE | ||
| ITEM | PART NO. | DESCRIPTION |
| 1 | 6350625 | BOLT |
| 2 | 6430601 | NUT |
| 3 | 7160630 | LOCKWASHER |
| 4 | 15301491 | ACCELERATOR CABLE |
| 5 | 15231443 | JOINT-BALL |
| 6 | 15302073 | SPIGOT |
| 7 | 108580 | LOCKWASHER |
| 8 | 15236609 | BRACKET |
| 9 | 179850 | BOLT |
| 10 | 103328 | LOCKWASHER |
| 11 | 15302092 | UTILITY CABLE |
| 12 | 15302066 | PLATE |
| 13 | 6440830 | SCREW |
| 14 | 271505 | NUT |
| 15 | 15302065 | PIN |
| 16 | 15302357 | BENT PLATE |
| 17 | 6350840 | SCREW |
| 18 | 7150815 | WASHER |
| 19 | 103339 | WASHER |
| 20 | 9362607 | BRACKET |
| 21 | 15302373 | BENT PLATE |
| 22 | 9056269 | CLIP-RUBBERIZED |
| 23 | 9100399 | SPRING CLIP |
| 24 | 179795 | BOLT |
| 25 | 109084 | NUT |
| RADIATOR ASSEMBLY | ||
| ITEM | PART NO. | DESCRIPTION |
| 1 | 15311874 | RADIATOR ASSY |
| 2 | 15275344 | TANK-TOP |
| 3 | 15268993 | TANK-CENTER |
| 4 | 15275345 | TANK-BOTTOM |
| 5 | 15270492 | FRAME SIDE-LH |
| 6 | 15268998 | STIFFNER-CTRE TANK |
| 7 | 15269000 | ROD-CROSSBRACE |
| 8 | 15275346 | BAR-SUPPORT |
| 9 | 15268709 | BOLT-U |
| 10 | 15268694 | WASHER-SPRING SQR. |
| 11 | 15268710 | PLATE |
| 12 | 15269002 | GASKET-CENTRE TANK |
| 13 | 15268691 | WASHER |
| 14 | 15268991 | WASHER |
| 15 | 15269004 | PLATE-CENTRE TUBE |
| 16 | 15268676 | FERRULE-RUBBER |
| 17 | 15268675 | FERRULE-BRASS |
| 18 | 15275433 | TUBE-JOULE |
| 19 | 15268963 | WASHER |
| 20 | 15268964 | LOCKWASHER |
| 21 | 15268689 | LOCKWASHER |
| 22 | 15268682 | WASHER |
| 23 | 15268688 | SCREW |
| 24 | 15269007 | SCREW |
| 25 | 15269008 | SCREW |
| 26 | 15268693 | SCREW |
| 27 | 15268690 | NUT |
| 28 | 15268681 | NUT |
| 29 | 15268685 | LOCKNUT |
| 30 | 15268686 | NUT |
| 31 | 15268997 | SET-STIFFENER BARS |
| RADIATOR MOUNTING | ||
| ITEM | PART NO. | DESCRIPTION |
| 1 | 103332 | LOCKWASHER |
| 2 | 106263 | WASHER |
| 3 | 179839 | BOLT |
| 4 | 179841 | BOLT |
| 5 | 179843 | BOLT |
| 6 | 223464 | BOLT |
| 7 | 274141 | NUT |
| 8 | 444625 | PLUG(0.38 IN) |
| 9 | 444679 | PLUG |
| 10 | 9139927 | WASHER |
| 11 | 9182221 | MOUNT-FLEXIBLE |
| 12 | 9186377 | MOUNT-FLEXIBLE |
| 13 | 9187694 | WASHER |
| 14 | 15254781 | PLATE-ANTIRECIRC`N |
| 15 | 274208 | LOCKNUT |
| 16 | 9419493 | LOCKNUT |
| 17 | 15238144 | RING-SHROUD |
| 18 | 15238145 | SCREEN LH |
| 19 | 15238146 | SCREEN RH |
| 20 | 15247519 | ROD-RADIATOR |
| 21 | 15254459 | SHROUD ASSY |
| 22 | 103341 | WASHER |
| 23 | 179833 | BOLT |
| 24 | 15256620 | PLATE-ANTIRECIRC`N |
| RADIATOR PIPING | ||
| ITEM | PART NO. | DESCRIPTION |
| 1 | 9214526 | CLAMP |
| 2 | 9257169 | TIE-CABLE |
| 3 | 15304383 | SILICONE HOSE |
| 4 | 9267949 | WASHER |
| 5 | 179887 | BOLT |
| 6 | 103339 | WASHER |
| 7 | 103319 | LOCKWASHER |
| 8 | 15323236 | CLAMP |
| RADIATOR HEADER TANK AND HOSES | ||
| ITEM | PART NO. | DESCRIPTION |
| 1 | 15254778 | REMOTE HEADER TANK |
| 2 | 15230178 | NUT-WINDOW |
| 3 | 15255877 | HOSE ASSY |
| 4 | 15255879 | HOSE ASSY |
| 5 | 15255880 | HOSE ASSY |
| 6 | 9228659 | HOSE-BULK |
| 7 | 9402826 | ELBOW |
| 8 | 9402708 | CONNECTOR |
| 9 | 9152893 | CLIP |
| 10 | 179837 | BOLT |
| 11 | 179838 | BOLT |
| 12 | 179883 | BOLT |
| 13 | 102635 | NUT |
| 14 | 444698 | PLUG |
| 15 | 103319 | LOCKWASHER |
| 16 | 108580 | LOCKWASHER |
| 17 | 109084 | NUT |
| 18 | 9267949 | WASHER-HARDENED |
| 19 | 9066282 | CAP |
| 20 | 9024628 | GASKET |
| 21 | 15236152 | SWITCH-LEVEL FLOAT |
| 22 | 9030744 | TUBING |
| 23 | 179839 | BOLT |
| OIL COOLER PIPING-DISC BRAKES | ||
| ITEM | PART NO. | DESCRIPTION |
| 1 | 15236505 | TUBE ASSY |
| 2 | 15245374 | TUBE ASSY |
| 3 | 15236511 | TUBE ASSY |
| 4 | 9071313 | TUBE ASSY |
| 5 | 15236508 | TUBE ASSY |
| 6 | 15250497 | TUBE ASSY |
| 7 | 15236509 | TUBE ASSY |
| 8 | 15301594 | PIPE ASSEMBLY |
| 9 | 15258071 | HOSE ASSY |
| 10 | 15248180 | HOSE ASSY |
| 11 | 15250626 | HOSE ASSY |
| 12 | 15258073 | HOSE ASSY |
| 13 | 15300378 | HOSE ASSY |
| 14 | 15245140 | HOSE ASSY |
| 15 | 15245138 | HOSE ASSY |
| 16 | 15245139 | HOSE ASSY |
| 17 | 15245132 | HOSE ASSY |
| 18 | 15257628 | HOSE ASSY |
| 19 | 15245134 | HOSE ASSY |
| 20 | 15245135 | HOSE ASSY |
| 21 | 15245133 | HOSE ASSY |
| 22 | 15245136 | HOSE ASSY |
| 23 | 15300455 | BRACKET |
| 24 | 15300456 | CLAMP |
| 25 | 15250566 | BRACKET ASSY |
| 26 | 9067454 | CLAMP |
| 27 | 15300496 | CLAMP |
| 28 | 15024973 | CLAMP-TUBE |
| 29 | 9072826 | CLAMP |
| 30 | 15004713 | CLAMP |
| 31 | 15004712 | CLAMP |
| 32 | 15001429 | CLAMP |
| 33 | 15004744 | BUSHING-SPLIT |
| 34 | 15015251 | BUSHING-SPLIT |
| 35 | 15015249 | BUSHING-SPLIT |
| 36 | 15004748 | NUT-STACKING |
| 37 | 15001428 | NUT-STACKING |
| 38 | 179883 | BOLT |
| 39 | 179890 | BOLT |
| 40 | 179839 | BOLT |
| 41 | 179841 | BOLT |
| 42 | 9167602 | FLANGE-SPLIT |
| 43 | 9409985 | FLANGE-SPLIT |
| 44 | 9409984 | FLANGE-SPLIT |
| 45 | 15002672 | O RING |
| 46 | 15008262 | O RING |
| 47 | 15008261 | O RING |
| 48 | 179885 | BOLT |
| 49 | 179887 | BOLT |
| 50 | 103329 | LOCKWASHER |
| 51 | 15008260 | O RING |
| 52 | 102635 | NUT-STACKING |
| 53 | 103328 | LOCKWASHER |
| 54 | 179893 | BOLT |
| 55 | 187433 | BOLT |
| 56 | 108580 | LOCKWASHER |
| 57 | 9077325 | CLIP-P |
| 58 | 179833 | BOLT |
| 59 | 15258078 | BRACKET |
| 60 | 15001430 | CLAMP |
| 61 | 15258079 | HOSE ASSY |
| OIL COOLER AND PIPING-TRANS | ||
| ITEM | PART NO. | DESCRIPTION |
| 1 | 15247679 | HOSE-SILICONE |
| 2 | 15308924 | CLAMP |
| 3 | 15311854 | GASKET |
| 4 | 116453 | ELBOW |
| 5 | 15005193 | HOSE ASSY |
| 6 | 15017770 | GASKET |
| 7 | 223437 | BOLT |
| 8 | 179883 | BOLT |
| 9 | 9419469 | NUT |
| 10 | 9191596 | WASHER |
| 11 | 15311852 | TUBE ASSY |
|
|
