China Glory Construction Machinery Co,;Ltd is your reliable genuine TEREX rigid dump truck parts supplier
9 Years
| Ask Lasest Price | |
| Brand Name : | TEREX |

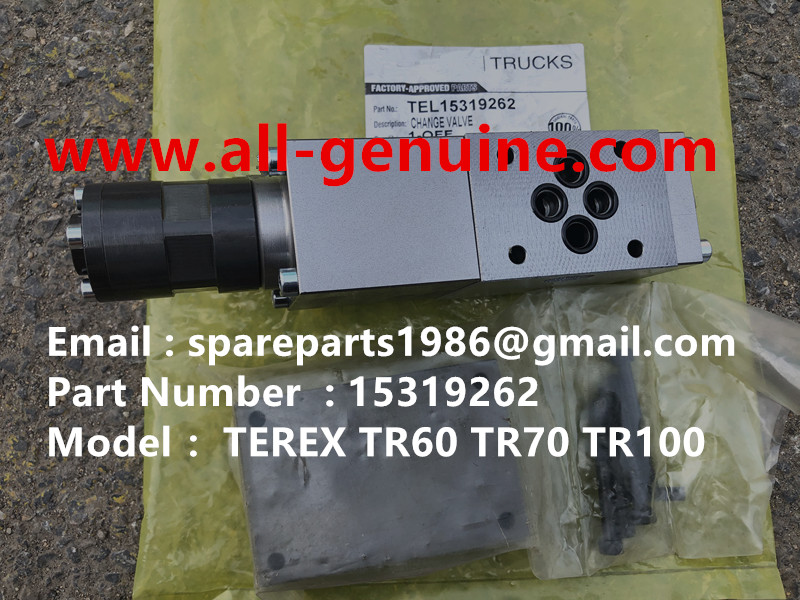

| Model Number : | 15319262 |
| Certification : | ISO9001 |
| Price : | 1-100 USD |
| Supply Ability : | 1000 PCS ONE WEEK |
| Delivery Time : | 3-5 WORKING DAYS |
Email : spareparts1986@gmail.com
Skype:nancy-1986.527
TEL / WhatsApp : 008618264966991
Web : www.all-genuine.com
Terex earthmoving equipment parts
| RETARDER GROUP | ||
| ITEM | PART NO. | DESCRIPTION |
| 1 | 23019796 | SEAL |
| 2 | 23017517 | SHAFT |
| 3 | 23017304 | SLEEVE |
| 4 | 23019651 | SEAL |
| 5 | 6884850 | RETAINER |
| 6 | 23012005 | ROTOR |
| 7 | 23019650 | SEAL |
| 8 | 6772140 | SHIM-.025 |
| 9 | 6776232 | PLATE |
| 10 | 6755269 | STRIP |
| 11 | 455012 | BOLT |
| 12 | 23014169 | RETAINER ASSY |
| 13 | 444619 | PLUG |
| 14 | 444625 | PLUG(0.38 IN) |
| 15 | 444613 | PLUG |
| 16 | 179891 | BOLT |
| 17 | 103329 | LOCKWASHER |
| 18 | 6832896 | GASKET |
| 19 | 6883081 | SHAFT ASSY |
| 20 | 6836231 | PLUG |
| 21 | 23014166 | HUB |
| 22 | 179883 | BOLT |
| RETARDER CONTROL VALVE | ||
| ITEM | PART NO. | DESCRIPTION |
| 1 | 6776297 | GASKET |
| 2 | 103321 | LOCKWASHER |
| 3 | 186285 | BOLT |
| 4 | 23013978 | VALVE ASSY |
| 5 | 6776314 | RING-SNAP |
| 6 | 23017380 | PLUG |
| 7 | 121538 | GASKET |
| 8 | 6835820 | VALVE |
| 9 | 6776300 | GASKET |
| 10 | 6776208 | COVER |
| 11 | 23016325 | SEAL |
| SPLITTER GEARING AND CLUTCHES | ||
| ITEM | PART NO. | DESCRIPTION |
| 1 | 23017810 | BOLT |
| 2 | 6776626 | PLATE |
| 3 | 6776627 | RING |
| 4 | 23011150 | RING-SNAP |
| 5 | 23019650 | SEAL |
| 6 | 29533089 | HUB |
| 7 | 6832481 | KIT-SEAL |
| 8 | 6770623 | SEAL |
| 9 | 6777908 | PISTON-SPLITTER LOW |
| 10 | 6756042 | SPRING-RETURN |
| 11 | 23041616 | PLATE-INTER SPLINED |
| 12 | 6776610 | PLATE-REACTION |
| 13 | 6835742 | SPRING |
| 14 | 6771690 | KEY |
| 15 | 6759340 | ANCHOR |
| 16 | 23017739 | GUIDE |
| 17 | 23017460 | GEAR ASSY |
| 18 | 23017459 | HUB |
| 19 | 6772143 | GEAR |
| 20 | 6832482 | SEAL |
| 21 | 6832483 | SEAL |
| 22 | 6758581 | SPINDLE |
| 23 | 23015601 | WASHER |
| 24 | 6771316 | PINION-SET |
| 25 | 6884835 | BEARING |
| 26 | 6833815 | HUB |
| 27 | 9414052 | BOLT |
| 28 | 23047965 | BEARING |
| 29 | 6758340 | GEAR-SPLITTER HIGH |
| MAIN HOUSING GROUP | ||
| ITEM | PART NO. | DESCRIPTION |
| 1 | 6833247 | SPRING |
| 2 | 23017509 | HOUSING |
| 3 | 444029 | REDUCER |
| 4 | 179837 | BOLT |
| 5 | 7964576 | BREATHER |
| 6 | 103323 | WASHER |
| 7 | 103028 | NUT |
| 8 | 6759381 | JUMPER-TUBE |
| 9 | 271564 | BOLT |
| 10 | 103325 | WASHER SPRING LOCK |
| 11 | 6779566 | HUB |
| 12 | 6837352 | GASKET |
| 13 | 6758437 | GASKET |
| 14 | 179887 | BOLT |
| 15 | 179893 | BOLT |
|
|
