China Glory Construction Machinery Co,;Ltd is your reliable genuine TEREX rigid dump truck parts supplier
9 Years
| Ask Lasest Price | |
| Brand Name : | TEREX |

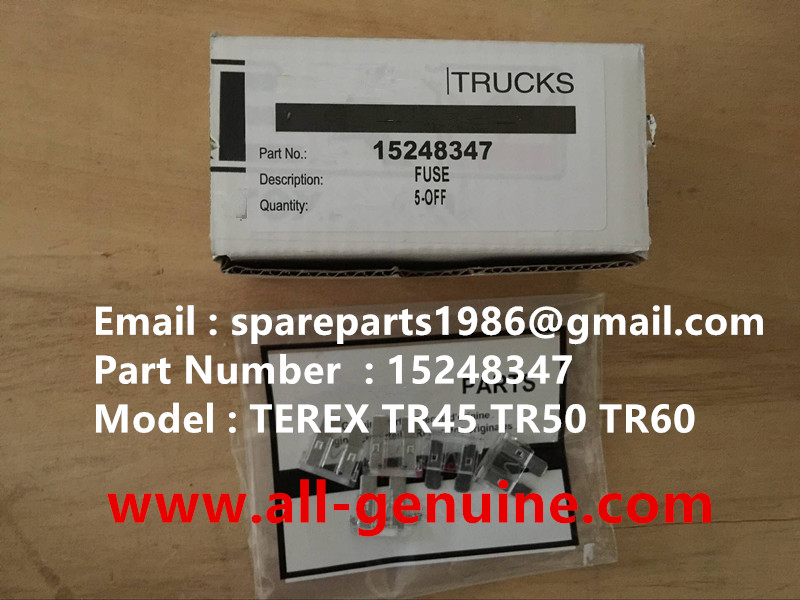

| Model Number : | 15248347 |
| Certification : | ISO9001 |
| Price : | 1-100 USD |
| Supply Ability : | 1000 PCS ONE WEEK |
| Delivery Time : | 3-5 WORKING DAYS |
Email : spareparts1986@gmail.com
Skype:nancy-1986.527
TEL / WhatsApp : 008618264966991
Terex earthmoving equipment parts
NC NO. QTY PART NO. DESCRIPTION
001 09255800 FRONT BRAKE PUMP
001 008 00120368 ·NUT
002 008 00103320 ·LOCKWASHER
003 001 09023283 ·BODY
004 001 09033730 ·TAG
005 008 09034481 ·GASKET
006 001 02466124 ·DUST PROOF SHIELD
007 008 09428735 ·BOLT
008 001 09023220 ·FIXED DISK
009 001 09023218 ·FIXED DISK
010 001 09023284 ·CUP RING
011 001 09023285 ·GUIDE SLEEVE
012 001 02466105 ·SHAFT
013 008 00103319 ·LOCKWASHER
014 008 00120367 ·NUT
015 001 02466109 ·SEAT RING
016 001 02466110 ·SPRING-RETURN
017 001 02466115 ·BEARING
018 008 00120221 ·SCREW
019 008 00121801 ·LOCKWASHER
020 001 02466113 ·COVER
NC NO. QTY PART NO. DESCRIPTION
021 001 02466114 ·O RING
022 001 02466117 ·O RING
023 001 02466112 ·O RING
024 001 09034275 ·SHELL
025 002 02466126 ·STUD
026 002 00103325 ·LOCKWASHER
027 003 00114498 ·NUT
028 001 02466118 ·PISTON
029 008 02466120 ·ROLLER
030 001 02466119 ·LOCK SLEEVE
031 001 02466121 ·WASHER
032 001 02466122 ·SPRING
033 001 02466106 ·CAP
034 001 02466116 ·FELT PAD
035 001 02466125 ·DISK
036 001 03858065 ·RING-SNAP
037 001 02466123 ·PISTON ROD
038 001 02267136 ·CLEVIS ASSY
039 001 09035510 ·PIN
040 001 00103385 ·COTTER PIN
| 6 | 186284 | BOLT |
| 7 | 444631 | PLUG(0.50") |
| TRANSMISSION MAIN HOUSING GROUP | ||
| ITEM | PART NO. | DESCRIPTION |
| 1 | 187238 | BOLT |
| 2 | 103323 | WASHER |
| 3 | 454815 | BOLT |
| 4 | 103339 | WASHER |
| 5 | 273340 | BOLT |
| 6 | 454818 | BOLT |
| 7 | 445968 | BOLT |
| 8 | 23016681 | GASKET |
| 9 | 6774322 | COVER |
| 10 | 179837 | BOLT |
| 11 | 103028 | NUT |
| 12 | 6885148 | KIT-PAN |
| 13 | 7964576 | BREATHER |
| 14 | 179818 | BOLT |
| 15 | 444335 | REDUCER |
| TRANS. HIGH RANGE GEARING AND CLUTCHES | ||
| ITEM | PART NO. | DESCRIPTION |
| 1 | 23011235 | PLATE |
| 2 | 23042199 | PLATE |
| 3 | 6834679 | PLATE |
| 4 | 6831704 | RING-SNAP |
| 5 | 6883192 | RETAINER-SPRING |
| 6 | 23016569 | PISTON-LETTER Z |
| 7 | 23016568 | PISTON-LETTER Y |
| 8 | 6836799 | SEAL |
| 9 | 6833980 | SEAL |
| TRANS. INTER RANGE GEARING AND CLUTCHES | ||
| ITEM | PART NO. | DESCRIPTION |
| 1 | 23046099 | SHAFT ASSY - MAIN |
| 2 | 6834333 | DRUM |
| 3 | 29506042 | SHAFT |
| 4 | 6835323 | BUSHING |
| 5 | 6835073 | CARRIER ASSY |
| 6 | 6835074 | CARRIER |
| 7 | 6834575 | RING-SNAP |
| 8 | 6835321 | WASHER |
| 9 | 6835580 | FLANGE AND CARRIER |
| 10 | 6835322 | BUSHING |
| 11 | 23041786 | PLATE |
| 12 | 6836465 | SUPPORT ASSY |
| 13 | 23011453 | SEAL- INTERNAL |
| 14 | 6880079 | SUPPORT-HOUSING |
| 15 | 23011235 | PLATE |
| 16 | 6834327 | GEAR |
| TRANS. LOW RANGE GEARING AND CLUTCHES | ||
| ITEM | PART NO. | DESCRIPTION |
| 1 | 23047771 | PLATE |
| 2 | 23041786 | PLATE |
| 3 | 6838558 | GEAR-REVERSE |
| 4 | 6836661 | RING-RETAINER |
| 5 | 6836659 | PISTON |
| 6 | 23011453 | SEAL-INTERNAL |
| 7 | 6881979 | HOUSING ASSY |
| 8 | 6883708 | PLUG |
| 9 | 6835369 | SEAL |
| TRANS. REVERSE RANGE GEARING AND CLUTCHES | ||
| ITEM | PART NO. | DESCRIPTION |
| 1 | 23047771 | PLATE |
| 2 | 23041786 | PLATE |
| 3 | 6838558 | GEAR-REVERSE |
| 4 | 903017 | BEARING |
| TRANS. FORWARD RANGE GEARING AND CLUTCHES | ||
| ITEM | PART NO. | DESCRIPTION |
| 1 | 23017215 | CLUTCH-INPUT |
| 2 | 6833980 | SEAL |
| 3 | 6836799 | SEAL |
| 4 | 23016569 | PISTON-LETTER Z |
| 5 | 23016568 | PISTON-LETTER Y |
| 6 | 6883192 | RETAINER-SPRING |
| 7 | 6831704 | RING-SNAP |
| 8 | 6839021 | HUB |
| 9 | 6834679 | PLATE-CLUTCH |
| 10 | 23042199 | PLATE |
| 11 | 6835605 | CLUTCH-HUB DRIVING |
| 12 | 6777231 | RING-SNAP |
| 13 | 6838695 | RING-SNAP |
| TRANSMISSION REAR COVER GROUP | ||
| ITEM | PART NO. | DESCRIPTION |
| 1 | 29505795 | BOLT |
| 2 | 103329 | LOCK WASHER |
| 3 | 191268 | BOLT |
| 4 | 6750924 | RING-SNAP |
| 5 | 6773311 | SEAL |
| FRONT DRIVELINE | ||
| ITEM | PART NO. | DESCRIPTION |
| 1 | 9013987 | DRIVELINE ASSY |
| 2 | 9053746 | CROSS ASSY |
| 3 | 695456 | BOLT |
| 4 | 2366106 | STRAP |
| 5 | 9411010 | FITTING-GREASE |
| REAR DRIVELINE | ||
| ITEM | PART NO. | DESCRIPTION |
| 1 | 9273082 | DRIVELINE ASSY |
| 2 | 15233277 | CROSS ASSY |
| 3 | 2366106 | STRAP |
| 4 | 695456 | BOLT |
| 5 | 9411010 | FITTING-GREASE |
| REAR AXLE DIFFERENTIAL | ||
| ITEM | PART NO. | DESCRIPTION |
| 1 | 103393 | PIN-COTTER |
| 2 | 9192613 | NUT |
| 3 | 9003683 | GASKET |
| 4 | 9265937 | YOKE ASSY |
| 5 | 9232899 | SLEEVE |
| 6 | 9250409 | DIFFERENTIAL-2.50:1 |
| 7 | 15244338 | SEAL |
| 8 | 9003785 | SEAL-RETAINER |
| 9 | 9424975 | BEARING |
| 10 | 9250389 | GEAR SET |
| 11 | 7451617 | BEARING |
| 12 | 9216692 | BOLT |
| 13 | 9192618 | DOWEL-BUSHING |
| 14 | 9412692 | CUP |
| 15 | 9424974 | CONE |
| 16 | 9219084 | PIN-DOWEL |
| 17 | 9008341 | WASHER-THRUST |
| 18 | 9008357 | GEAR |
| 19 | 9008365 | WASHER-THRUST |
| 20 | 9008364 | PINION ASSY |
| 21 | 9008382 | SPIDER |
| 22 | 9113457 | LOCK WIRE |
| 23 | 9170517 | BOLT |
| 24 | 9114897 | SCREW |
| 25 | 179887 | BOLT |
| 26 | 139230 | SCREW |
| 27 | 15234244 | SEAL-CORD |
|
|
