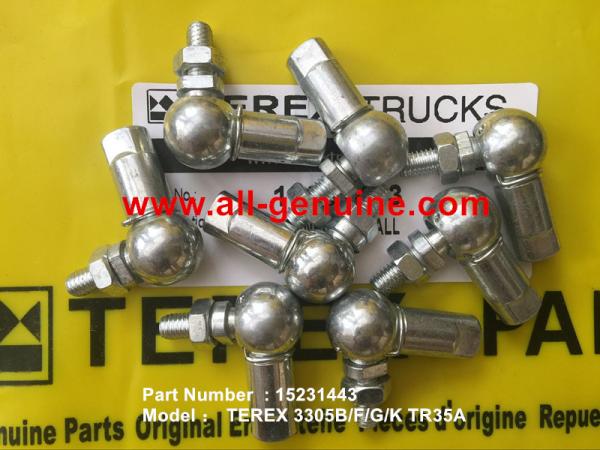

Terex earthmoving equipment parts

NC NO. QTY PART NO. DESCRIPTION
001 020 15034095 ELBOW
002 001 15034096 HOSE-front brake camshaft (L)
003 001 15034097 HOSE-steeringCYLspherica
bearing(L)
004 001 15034098 HOSE-steering pin(down)
005 001 15034099 HOSE –front distributor
006 001 15034124 front distributor
007 001 15034101 HOSE - steering pin (upper)
008 001 15034102 HOSE –steering bearings (R)
009 001 15034103 HOSE - front brake camshaft (R)
010 002 15034104 HOSE - hoist bearings (upper)
011 001 15034105 HOSE - lateral bar joint
bearings (R)
012 002 15034186 HOSE –front strut ()
013 002 15034107 HOSE –body linkage pins(L/R)
015 002 15034109 HOSE - rear strut joint
bearings (upper)
016 001 15034180 HOSE –hoist CYL bearings(R/D)
018 002 15034112 HOSE –rear strut joint
bearings(D)
019 001 15034181 rear distributor
020 002 15034114 HOSE - rear brake camshaft (L/R)
021 002 15034115 HOSE - rear brake camshaft (L/R)
022 001 15034116 HOSE –hoist bearings(DL)
023 0011 15034117 adaptor
TABLE NO.
2-2
NC NO. QTY PART NO. DESCRIPTION
024 001 15034118 HOSE –A-frame joint bearings
026 001 15034120 HOSE –lateral bar joint bearings(L)
027 001 15034121 HOSE –rear distributor
028 001 15034179 Pump
030 001 15034187 HOSE –front strut (R)
031 001 15034188 HOSE–steering CYL bearings(L)
032 001 15034189 HOSE - steering CYL bearing(R) (r)
043 002 20000987 HOSE –Lateral bar
044 002 20000988 HOSE –lateral bar
A1-SERIES #10 CLAMPS- 0.84 IN(21 MM)DIA. OPENING
PART NO. NO. OF OPENINGS
15003258 1
15003251 2
15003252 3
15003253 4
15003254 5
15003255 6
15003256 7
15003257 8
15004760 29
A2-SERIES #16 CLAMPS- 1.18 IN(30 MM)DIA. OPENING
PART NO. NO. OF OPENINGS
15001403 1
15001404 2
15001405 3
15001406 4
15001407 5
15001408 6
15001409 7
15001410 8
15001411 9
15004761 2l
MULTI-USE CLAMPS AND HARDWARE
A3-SERIES #32 CLAMPS- 2.12 IN(54 MM)DIA. OPENING
PART NO. NO. OF OPENINGS
15001429 1
15001430 2
15001431 3
15001432 4
15001433 5
15004773 13
BSPILT BUSHINGS
B1 SPILT BUSHINGS FOR #10 CLAMPS
PART NO. I.D.(INCHES)
15003259 .38
1503260 .52
15003261 .66
15004735 .75
B2 SPILT BUSHINGS FOR #16 CLAMPS
PART NO. I.D.(INCHES)
15001412 .23
15001413 .36
15001425 .41
15001414 .48
15001419 .52
15014974 .56
15001415 .61
15001420 .66
15001416 .73
15001423 .81
15001417 .86
15001421 .88
15001424 .92
15001418 .98
15001422 103
A4-SERIES #46 CLAMPS- 2.50 IN(63 MM)DIA. OPENING
PART NO. NO. OF OPENINGS
15004712 1
15004713 2
15004714 3
15004715 4
15004716 11
B3 SPILT BUSHINGS FOR #32 CLAMPS
PART NO. I.D.(INCHES)
15004795 100
150014975 112
15001434 120
15014976 141
15001435 145
15014977 147
15001436 180
15014978 180
MULTI-USE CLAMPS AND HARDWARE
B3 SPILT BUSHINGS FOR #32 CLAMPS
PART NO. I.D.(INCHES)
15014979 190
15015249 200
B4 SPILT BUSHINGS FOR #46 CLAMPS
PART NO. I.D.(INCHES)
15004739 145
15004740 170
15004741 178
15004742 204
15004743 217
15004744 283
15015250 200
15015251 250
15015252 268
C THREAD ADAPTERS
PART NO. SIZE(INCHES)
15001401 516—18X125
15001427 38—16X150
15014687 38—16X188
DSTACKING NUTS W/SOCKET HEADS
PART NO. THREADS USE WITH
15003250 56—18 #10 CLAMPS
15001402 516—18 #16 CLAMPS
15001428 38—16 #32 CLAMPS
15004748 12—13 #64 CLAMPS
DSTACKING NUTS W/SOCKET HEADS
WELDING ADAPTERS
PART NO. THREADS USE WITH
15001400 516—18 #10 CLAMPS
15001426 38—16 #32 CLAMPS
15004759 12—13 #64 CLAMPS
FADAPTERS
F1 37°FLARE FOR #10 CLAMPS
PART NO. THREAD SIZE(INCHES)
15003262 716—20
15003263 916—18
15003264 34—16
15003265 78—14
F2 45°FLARE FOR #10 CLAMPS
PART NO. THREAD SIZE(INCHES)
15014722 716—20
15014727 58—18
15014747 34—16
15014726 78—14
F3 37°FLARE FOR #16 CLAMPS
PART NO. THREAD SIZE(INCHES)
15013938 716—20
15014098 916—18
15014438 34—16
15024755 78—14
15014980 1 116—12
15004789 1 516—12
F4 45°FLARE FOR #16 CLAMPS
PART NO. THREAD SIZE(INCHES)
15014561 716—20
15014719 58—18
15014562 34—16
15014716 78—14
15014563 l 116—12
